MPD Live

SOFTWARE


PMDSmart™

The only automated, engineered, and unmanned MPD software in the market.

Opla’s PMDSmart™

HIGHLIGHTS

  • Fully Automated
  • Cloud Connected
  • EDR Data Streaming
  • OplaML Enabled
  • Robotics Enabled with PMD™ device
  • Touch Screen HMI

Mission
INTEGRATED HYDRAULICS MODEL

MPDSmart™ built in to provide you with real-time bottom hole pressures and maximum control.

Mission
SBP HIGH LIMIT

Built in automated pressure relief to ensure the weakest point in your wellbore is never compromised.

Mission
MULTIPLE PRESSURE CONTROL MODE

Customizable pressure control modes include SBP and BHP or ECD at any point in the wellbore.

Mission
DOWNHOLE MUD TRACKER

Visual representation to allow for 100% accurate tracking of pills, displacements, sweeps, and more.

Mission
REAL-TIME SURGE & SWAB

Automated choke reaction to adjust for pressure changes due to pipe movement.

Mission
KICK & LOSS DETECTION

Automated choke response to kick and loss events to alert crew and act faster than conventional methods.

Mission
CONNECTION MODE

Non-linear choke algorithms coupled with Opla’s pump diverter allow for constant BHP control even with pump off.

Mission
DRILLING WINDOW PREDICTION

Machine learning from a digital twin to predict pressure events or changes before they happen.


PMDSmart™
HARDWARE INTEGRATION

Get a real-time view of what is happening in your wellbore.

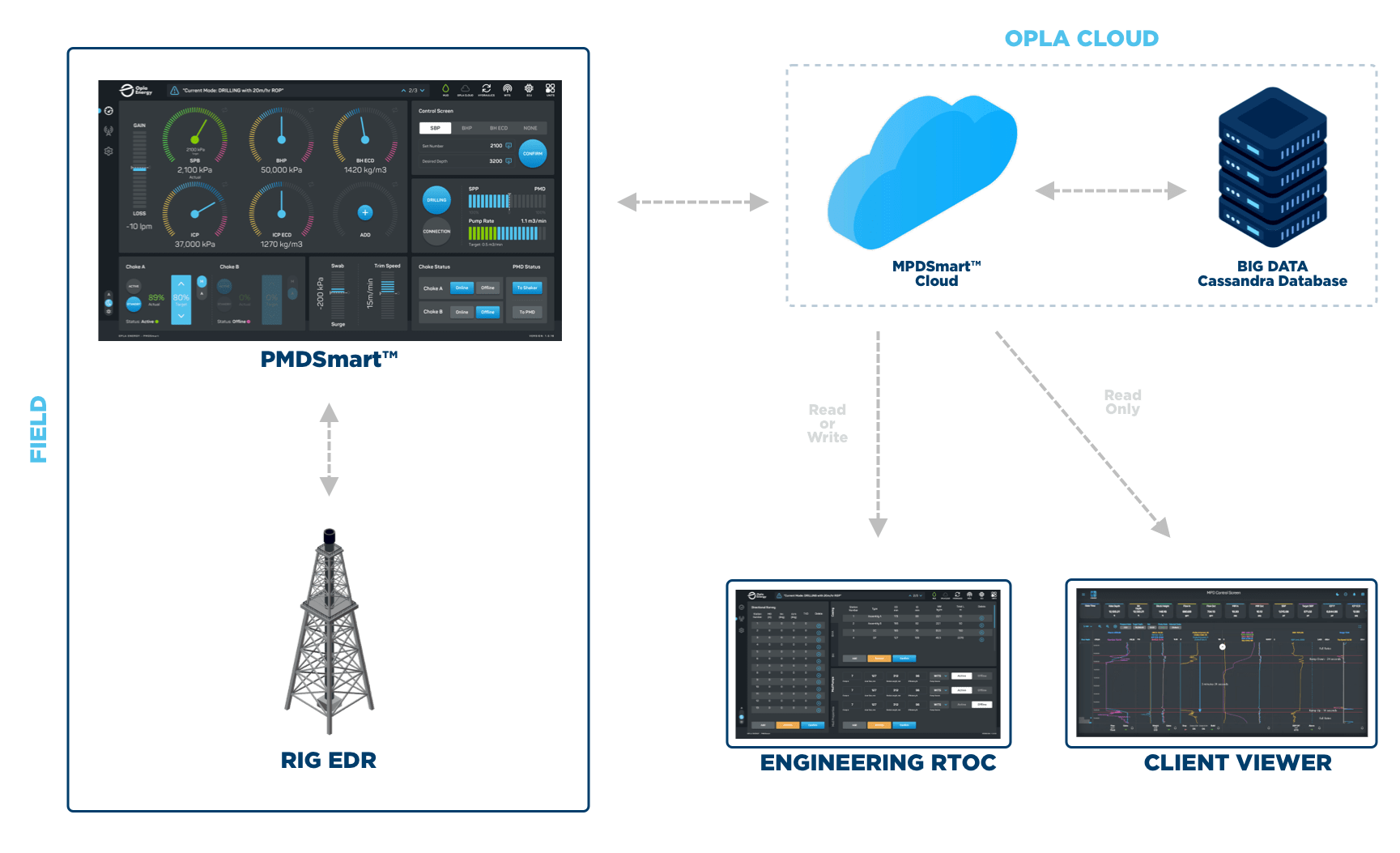

PMDSmart™ was designed with the driller in mind. Its simplified UI and built-in automation ensures it can easily be run with minimal training. Just set the desired downhole pressure, and the real-time hydraulics and automated choke reactions take care of the rest. IIoT and cloud infrastructure allows the RTOC to update necessary parameters in the hydraulics engine based on actual well parameters, or even take remote control of the PMD™. Cloud integration also allows for client viewing of all device parameters, improving operations and downhole visibility. All the data collected is being stored and analyzed by OplaML (machine learning) to optimize drilling parameters and eliminate NPT.



MPDLive™
WEB VIEWER

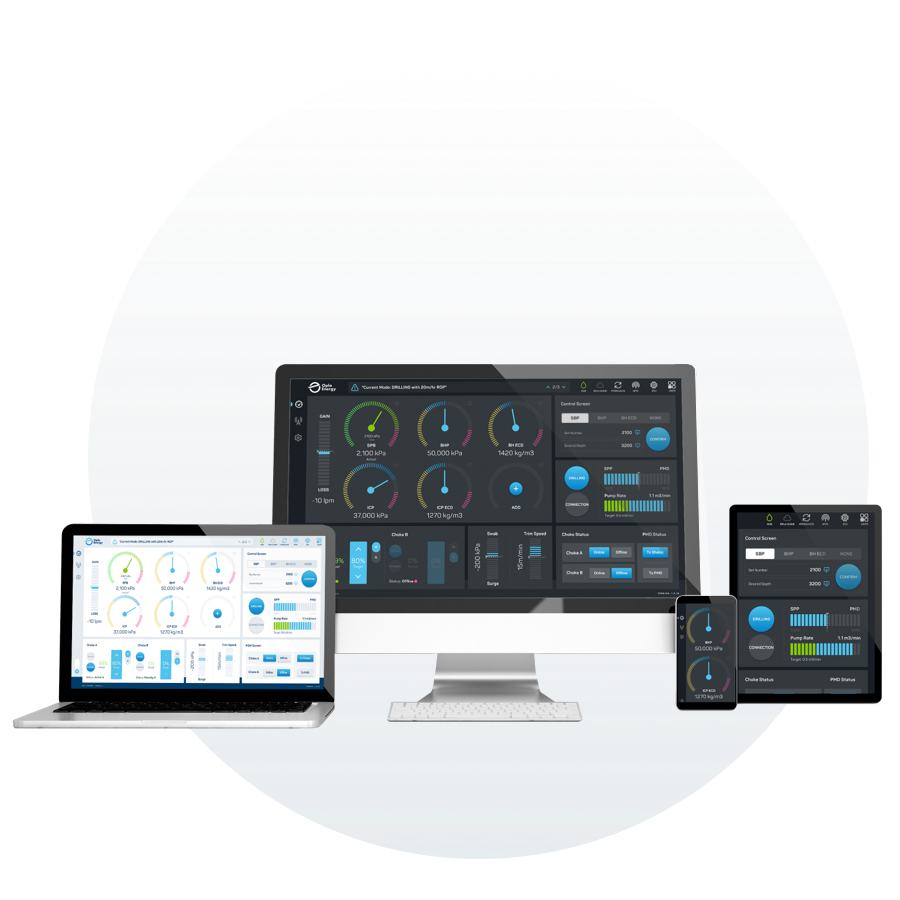

Access every detail of your MPD operations by logging on to Opla’s MPDSmart™ web viewer. Retrieved from the cloud every second to provide you with a true real-time view of what is happening on location. Increased visibility of field operation by monitoring from any device with access to a web browser. Compatible with Chrome, Microsoft Edge & Firefox.

MPDLive™
MOBILE VIEWER

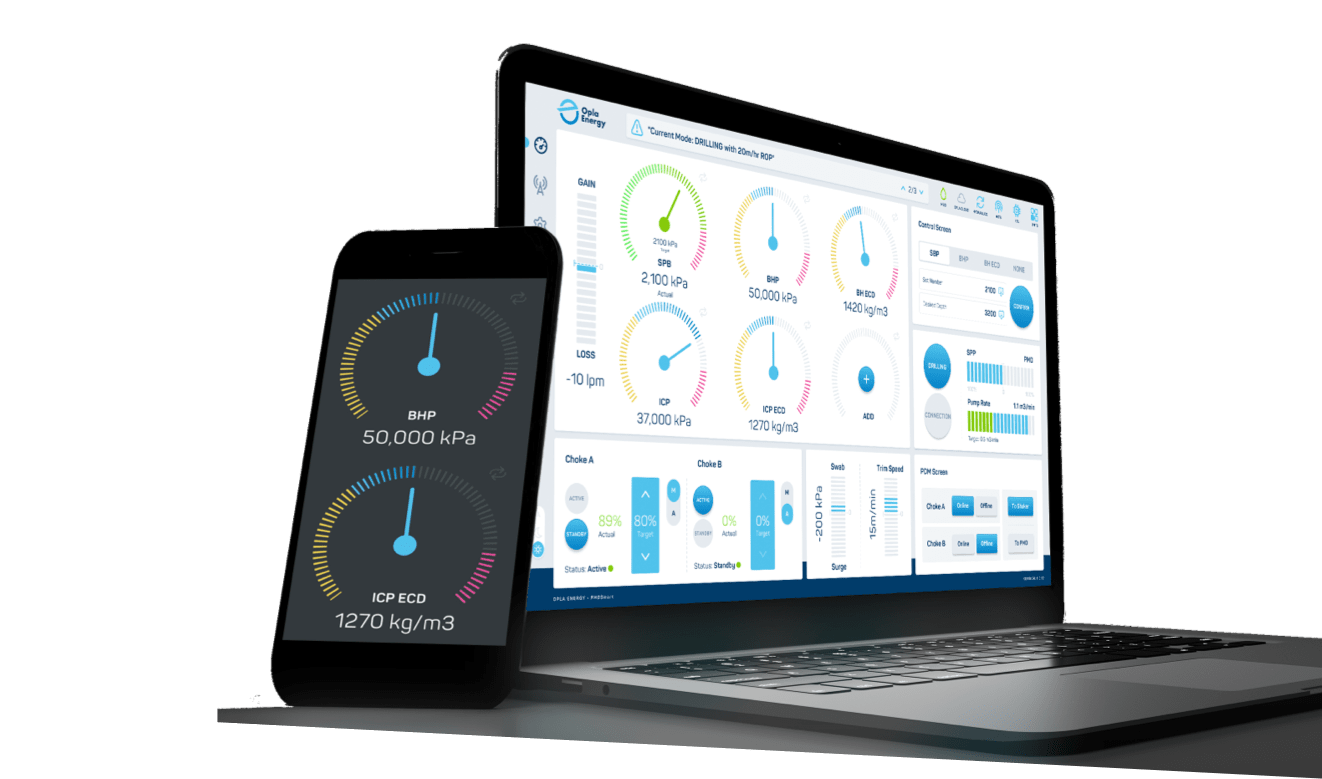

Don’t have access to a computer? No problem! Now you can monitor your MPD operations on the go with Opla’s mobile viewer. With full functionality at your fingertips and customizable alerts, you will always be up to date with what is happening on-site. Available on the App Store & Google Play.


PMDSmart™

CONTROL SCREEN


PMDSmart™ Control Screen located in doghouse.

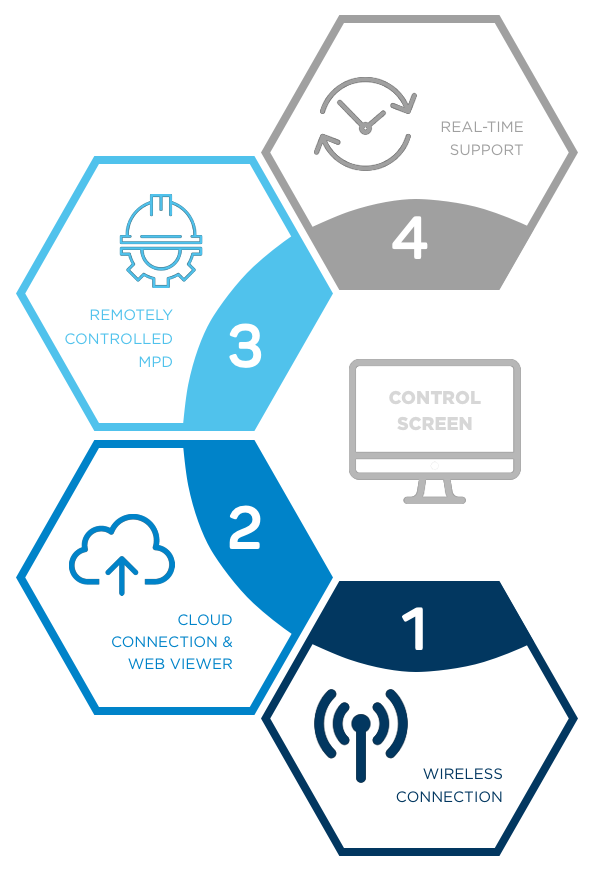

FEATURES

  • Wireless connection to PMD. No need to run cables from substructure to doghouse.
  • Cloud connection allows access for MPD engineers in RTOC to input all well data necessary for real-time hydraulics.
  • Custom designed to be run by driller with minimal training from MPD personnel.
  • MPD Engineers that can access the application 24/7 to support field operations.

Opla’s

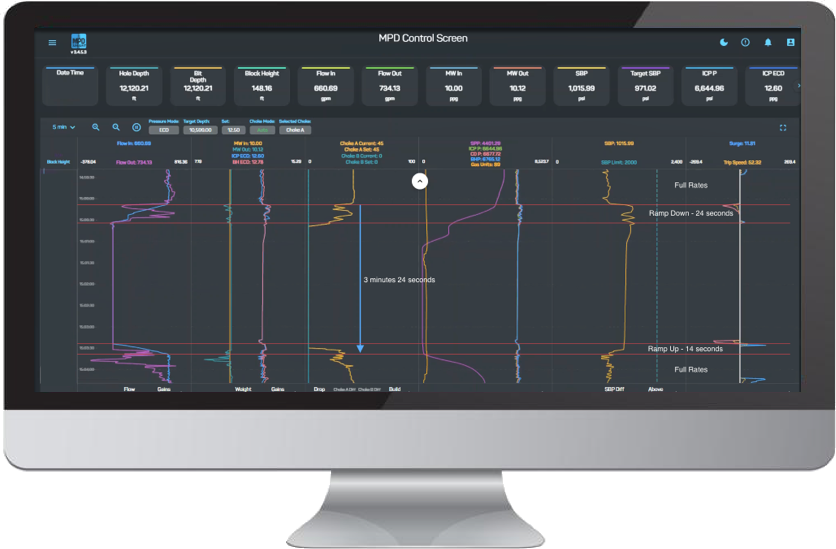

AUTOMODE

Intelligent logic for automated operation of the choke, minimizing the pressure overshoot.

Automode is set to control downhole pressure and automatically adjust surface pressure to always obtain the desired downhole pressure. Based on data taken from rig.

HIGHLIGHTS

  • No additional equipment needed such as flow diverters, continuous circulation subs, etc.
  • No ramp schedules to follow or added time on connections.
  • SBP automatically adjusts as driller ramps down pumps and traps desired pressure necessary to obtain set downhole pressure.
  • No human intervention required, completely automated.
  • Hydraulics model is maintained remotely by MPD engineers through IIoT.
