OplaCloud

Opla Energy Cloud platform is a unique platform built for big data and machine learning and is very unique in its capabilities.
OPLA’S CLOUD PLATFORM

The Opla Energy Cloud Platform’s goal is to deliver data to the customer as quickly and efficiently as possible. It allows us to connect our customers with their data in real-time, anytime and anywhere.

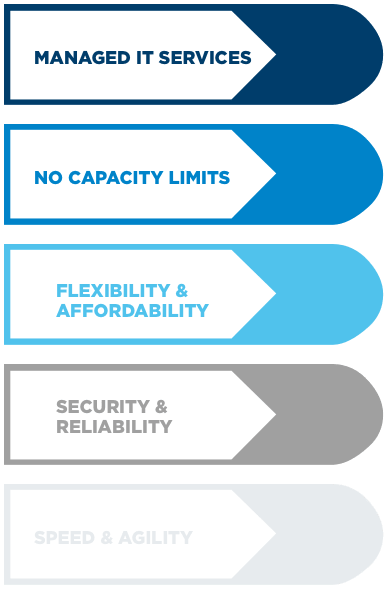

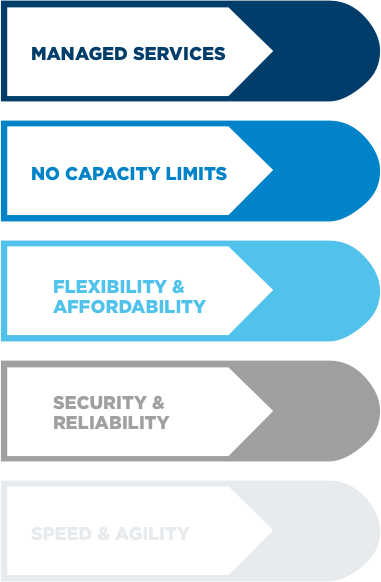

OPLA’S CLOUD HIGHLIGHTS

  • Availability of managed IT services
  • No capacity limits
  • Flexibility and affordability
  • Security and reliability
  • Speed and agility



IOT

CLOUD PLATFORM

Our platform is based on IoT, using different technologies that make it fault-tolerant, accurate, resilient, and extensible.
It is built on a combination of technologies such as lambda proxy, Apache Kafka, Cassandra, in-memory databases, and streaming event processing frameworks within the Cloud landing zone ecosystem that ensures its resiliency and 24/7 availability. Along with these core big data tools and platforms, supporting technologies are utilized for end-to-end delivery of drilling data, making our cloud platform unique in its reliability and innovation.

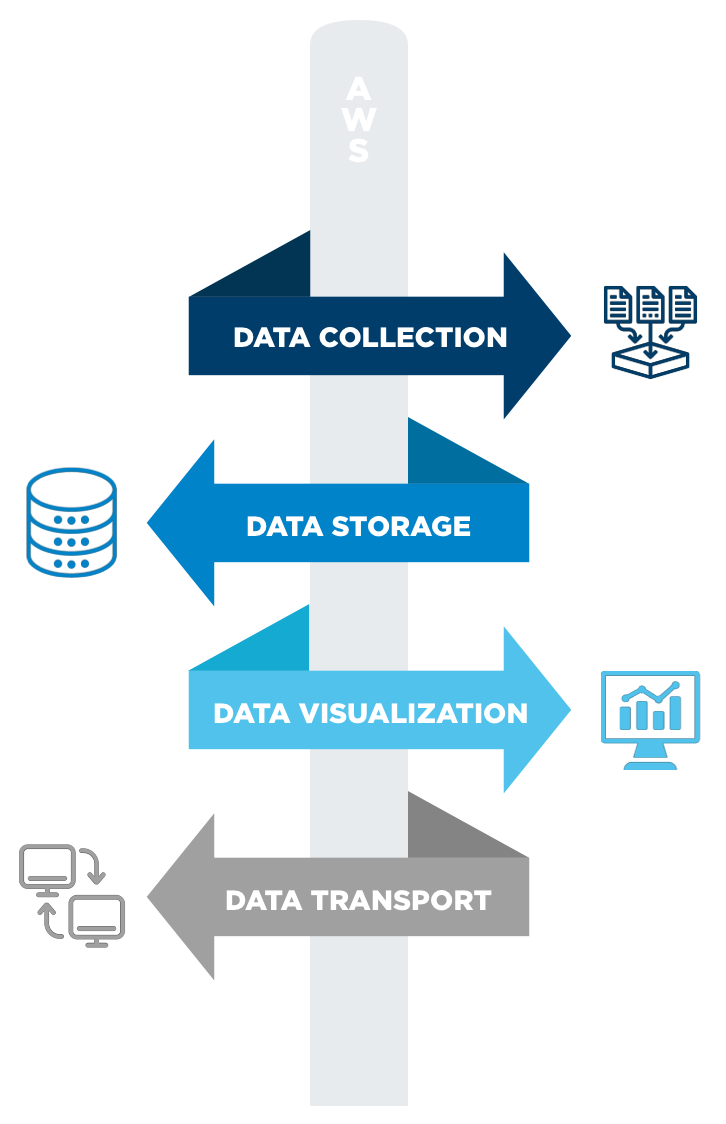

Data Collection
Data from rigs is collected using rig sensors and transported to the cloud infrastructure through the internet. A lambda proxy serves as the entry point to our cloud ecosystem. This will in turn forward the collected data to clustered Apache Kafka instances which are used as real-time streaming data pipelines.
Data Storage
After data is at the Kafka clusters layer, it is then retrieved in a FIFO manner using a java application and stored to a NoSql Cassandra database.
Data Visualization
From the Apache Kafka clusters, a different java application ingests the data as it comes in from remote rigs and pushes it to all connected client applications in real-time using the flux technology. Json format is used for serializing and transmitting data over a network.
Data Transport
The transport mechanism is based on the availability of the internet using a human readable interchange json for its lightweight format.

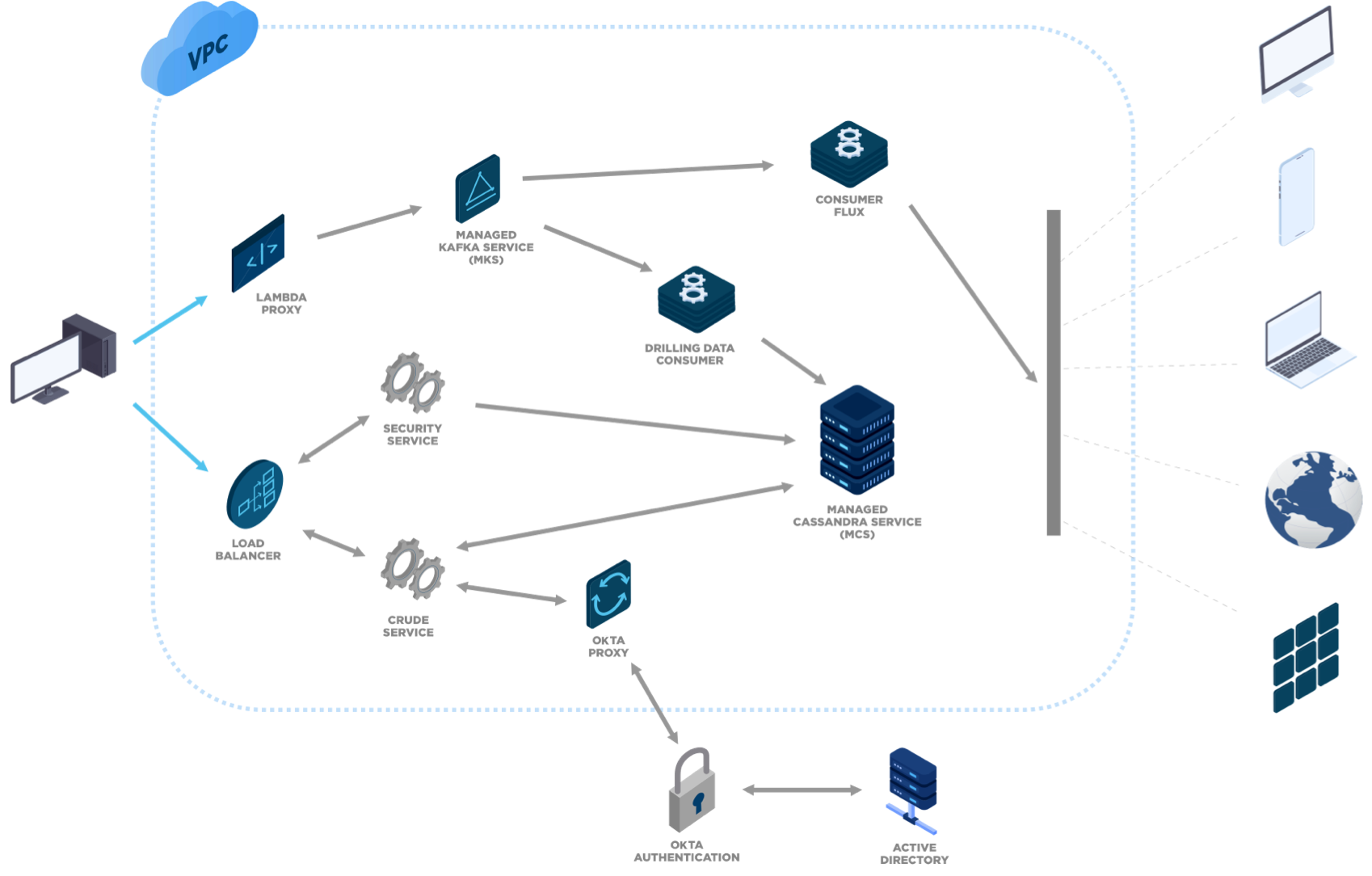

VPC Schema
PERFORMANCE
DRILLING
